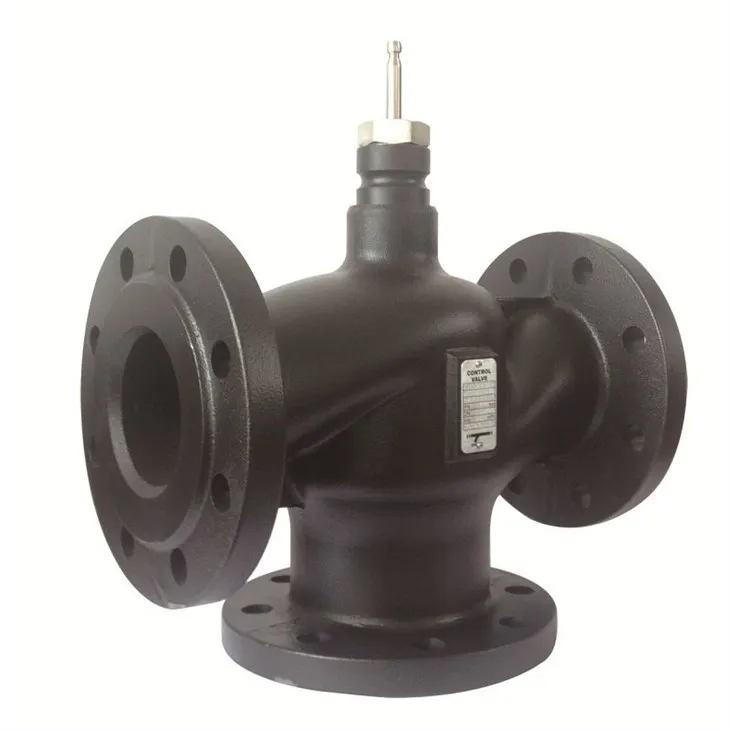

Electric regulating valve
Domestic Electric Regulating Valve is used to regulate the flow and temperature of hot and cold water systems in homes and small buildings, and is widely used in central air conditioning, heating and cooling systems.
Features
Rugged and Pressure-Resistant
The 400-18 ductile iron valve body, with a nominal pressure of up to PN25, is highly corrosion-resistant and suitable for long-term, high-pressure operation.
Wide Temperature Range
Operating temperature range: -10°C to 150°C, suitable for chilled water, hot water, and brine systems.
Reliable Sealing
The 304 stainless steel valve core and stem are equipped with an O-ring seal for zero leakage.
Standardized Installation
The actuator flange complies with HG20592-2009 / ISO7005 standards for easy connection and compatibility with a variety of system components and engineering applications.
Specification
|
Name |
Ductile iron-water valve |
Ductile iron-steam valve |
cast steel |
stainless steel |
|
Classification |
||||
|
Nominal pressure |
PN16/PN25 |
PN16/PN25 |
PIN16/ PN25 |
PN16/PN25 |
|
Temperature resistance range |
-10..150℃ |
-10..220℃ |
-25...350℃ |
-20...220 ℃ |
|
Bore |
DN40-DN250 |
DN15-DN400 |
DN32-DN350 |
DN32-DN200 |
|
Attended mode |
Flange HG20592-2009 ISO7005 |
Flange HG20592-2009 ISO7005 |
Flange HG20592-2009 ISO7005 |
Flange HG20592-2009 ISO7005 |
|
Discharge characteristic |
Equal percentage |
DN15-DN25 is linear, DN32-DN400 equal percentage |
Equal percentage |
Equal percentage |
|
leak rate |
Below 0.02% of the value of Kvs |
Below 0.02% of the value of Kvs |
Below 0.02% of the value of Kvs |
Below 0.02% of the value of Kvs |
|
Applicable medium |
Frozen water, low temperature water, high temperature water, and brine |
Cold water, hot water, high temperature hot water, ethylene glycol solution, saturated steam, hot oil |
Normal temperature water, high temperature water, ethylene glycol solution, saturated / superheated steam, high temperature oil |
Normal temperature water, high temperature water, ethylene glycol solution, steam, corrosive medium |
|
Rated travel |
20/40mm |
20/40/60mm |
20/40/60mm |
20/40mm |
|
Valve material |
Ductile iron 400-18 |
Ductile iron 400-18 |
WCB-cast steel |
304 Stainless steel |
|
Valve core, valve rod Seat, seal plug |
304 Stainless steel |
304 Stainless steel |
304 Stainless steel |
304 Stainless steel |
|
Balancing cavity sealing material |
Type 0 circle |
The PTEE Panzhai Circle |
The PTEE Panzhai Circle |
The PTFE panstopper ring |
|
Pressure plug sealing material |
Fluororubber + PTFE universal seal |
Fluororubber + PTFE universal seal |
Fluororubber + PTFE universal seal |
Fluororubber + PTFE universal seal |
