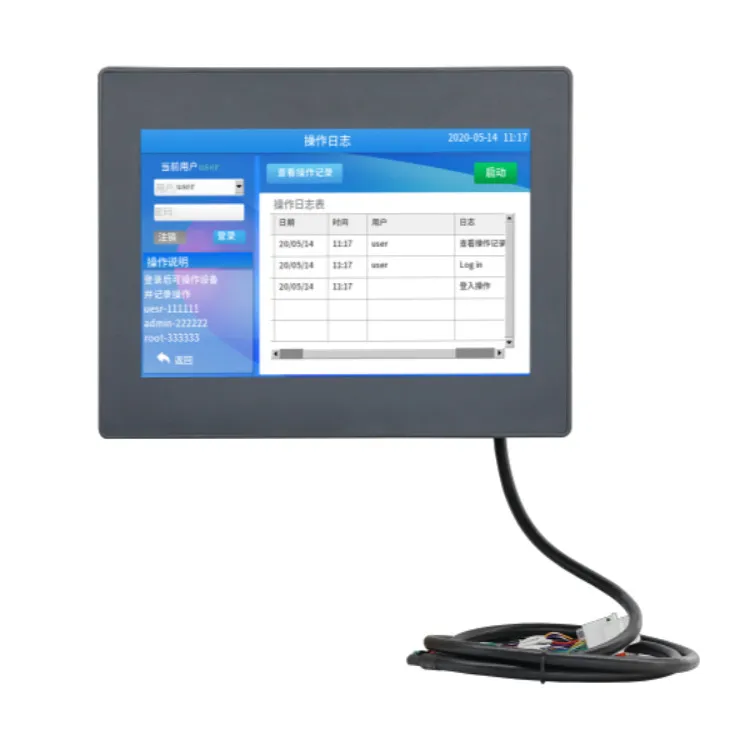

XH100E-LRF Waterproof IoT Gateway
XH100E-LRF is a high-performance industrial waterproof touch screen designed for harsh environments. The whole machine reaches IP65 protection level, has excellent anti-seismic and waterproof capabilities, and can still operate stably under harsh industrial conditions.
XH100E-LRF has built-in powerful IoT functions, supports remote services and real-time monitoring, allowing users to obtain equipment operation status and data analysis anytime and anywhere, and provides intelligent solutions for efficient operation and maintenance of industrial sites.
Product features
- Shockproof and waterproof
- Three download methods, efficient and convenient
- Built-in IoT function, supports remote service
Product specification
|
Model |
XH100E-LRF |
|
Performance requirement |
|
|
Displays the size |
10.1"TFT |
|
Display area |
222.72(W)x125.28(H) |
|
Resolution ratio |
1,024 * 600 pixels |
|
Show color |
16.2M True color |
|
Contrast ratio |
500:1 |
|
Backlit type |
LED |
|
Luminance |
300cd/m2 |
|
Backlight life |
Greater than 30,000 hours |
|
Touch panel |
4-wire precision resistance network (surface hardness 4H) |
|
Processor |
ARM RISC32Bit792MHz |
|
Memorizer |
128MBNAND of flash memory + 128MBDDR3 of memory |
|
RTC |
Built-in real-time clock |
|
Scalable memory |
1USB Host |
|
Print the port |
USB Host / serial port |
|
Ethernet |
LAN0:10/100 Mbps |
|
Program download |
USB Slave / U disk / network port |
|
Communication port |
COM0:RS232/ RS485COM2:RS232 |
|
Electrical specifications |
|
|
Enter the power supply |
DC10V～DC28V |
|
Power dissipation |
6W@DC24V |
|
Allow power loss |
<3ms |
|
Insulation resistance |
More than 50 MQ @ 500 VDC |
|
High-voltage insulation test |
500 VAC for 1 min |
|
Structural specifications |
|
|
Sheathing material |
engineering plastic |
|
Outline dimension |
271×191X35.5mm |
|
Install the opening size |
260X180mm |
|
Weight |
0.9Kg |
|
Environmental specification |
|
|
Operating ambient temperature |
0～50℃ |
|
Humidity of working environment |
10 ~ 90% RH (no condensation) |
|
Storage environment temperature |
-20～60℃ |
|
Storage environment humidity |
10 ~ 90% RH (no condensation) |
|
Sine vibration test |
10 to 500 Hz, 30 m/s2, triple axis / 1 hour |
|
Cooling-down method |
natural air cooling |
