Siemens SIMATIC HMI Basic Type

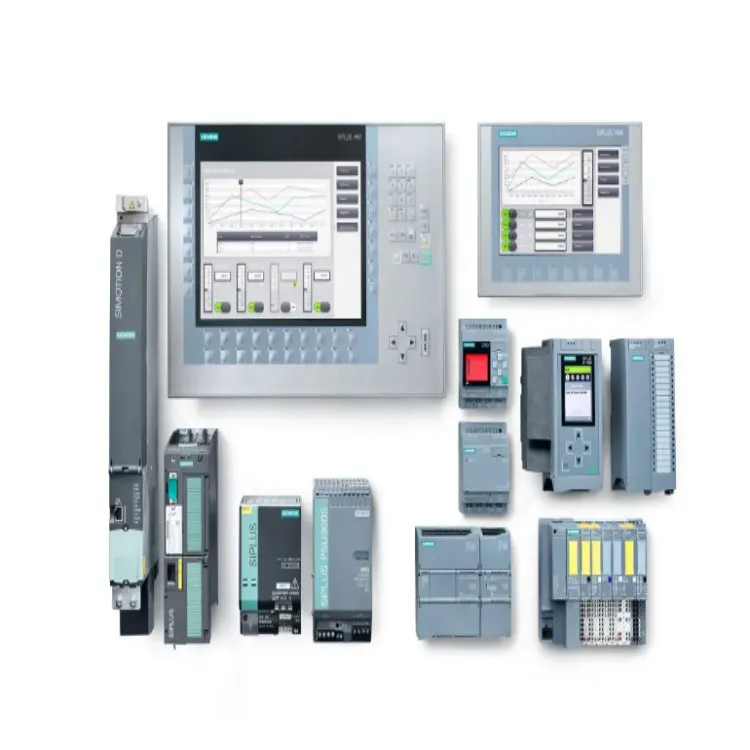

Siemens SIMATIC HMI basic HMI series, especially KP8, KP8F and KP32F key panels, provide efficient and economical operator panel solutions for industrial automation systems. These basic HMI panels are pre-assembled and can be directly installed in the control cabinet. They have a protection level of IP65, ensuring long-term and stable operation of the equipment in harsh environments. Its intelligent long-stroke keys with LED backlight (5 colors can be selected) make operation more intuitive and convenient. The integrated PROFINET interface enables the panel to be easily connected to the network, while supporting digital I/O, and can be connected to key switches or indicator lights to meet a variety of industrial control needs. SIMATIC HMI basic panels also have integrated safety functions, which can realize fail-safe transmission of signals through the PROFIsafe protocol to ensure high reliability and safety of the system. This series of panels has a widescreen display of 4 to 12 inches, supports adjustable backlight, and has a high-resolution display effect. Users can configure the vertical screen display according to actual needs. The combination of touch screen and programmable keys makes operation more flexible and intuitive. At the same time, the panel supports USB connection for project transfer, data archiving, and connecting keyboard and mouse, further improving the convenience of operation.
Product features
- Very flexible and convenient installation, can be directly installed in the control cabinet
- Touch screen operation and configurable buttons, support various combination operations
- Direct connection to emergency stop button or other fail-safe signals
Product specification
|
Output type |
KP8 PN |
KP8F PN |
KP32F PN |
|
|
The LED color mode |
5 species (green, red, yellow, blue, white) |
|||
|
Typical service life |
||||
|
Short stroke button (switch times) |
1500.000 |
1500.000 |
1.500000 |
|
|
LED (On time,%) |
100% |
100% |
100% |
|
|
Joggle |
||||
|
Digital quantity is person 1 output |
8 |
8 |
16 |
|
|
Enter ault security digital input into SIL2ISIL3 |
-1- |
211 |
412 |
|
|
The PROFINET (Ethernet) interface |
2 |
2 |
2 |
|
|
Function |
||||
|
Key and light testing |
√ |
√ |
√ |
|
|
Levels of protection |
||||
|
Front panel / backplane |
IP65/IP20 |
P65/IP20 |
P65/IP20 |
|
|
Connectable controller |
||||
|
SIMATIC57,WinAC |
57-1200,57-1500,57-300,S7-400 |
S7-12002,S7-1500²,57-300(F),57-400(F) |
||
|
SIMATIC S5 |
√ |
√ |
√ |
|
|
SINUMERIK |
√ |
√ |
√ |
|
|
SIMOTION |
√ |
√ |
√ |
|
|
Engineering software |
||||
|
Configuration software |
STEP7V5.5 or STEP7 BasicV11 and later |
|||
|
Ambient condition |
||||
|
Installation site |
perpendicular |
perpendicular |
perpendicular |
|
|
Without mandatory ventilation Maximum allowable tilt angle of () |
+-30 |
+1-30 |
+-30 |
|
|
Relative maximum humidity of (%) |
90 |
90 |
90 |
|
|
Temperature |
||||
|
Work (vertically mounted), ℃ |
0-+55 |
0-+55 |
0-+55 |
|
|
Work (maximum tilt angle), C |
0-+45 |
0-+45 |
0-+45 |
|
|
Size |
||||
|
Ront panel size (WH, mm) |
98×155 |
98×155 |
295×155 |
|
