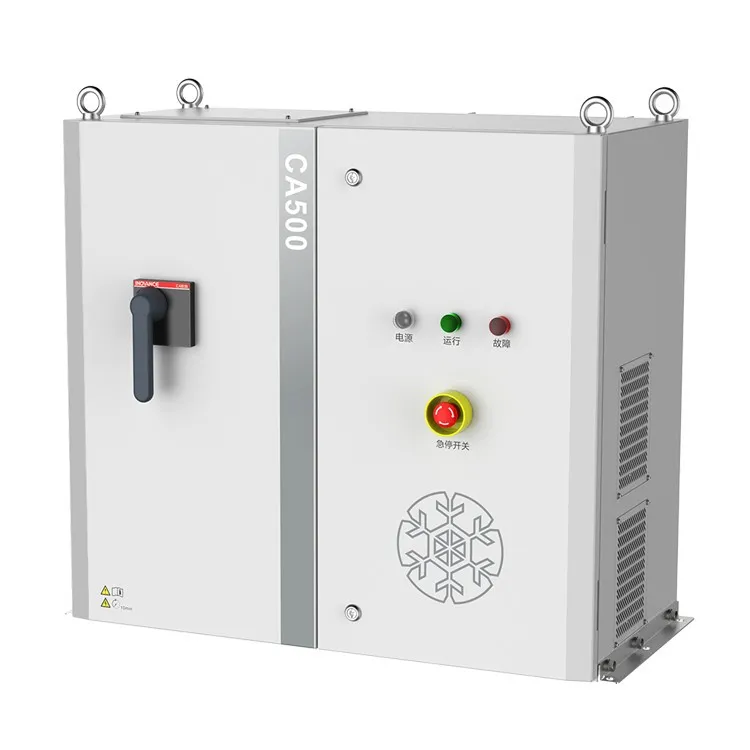

VFD500 air conditioner VFD
VFD500 inverter for central air conditioners is a high-efficiency device designed for central air conditioning systems. It uses advanced vector control technology and can automatically adjust the output voltage-frequency ratio according to the motor load rate, thereby realizing intelligent energy-saving control of the system. This inverter for central air conditioners not only improves the overall efficiency of the motor and system, but also greatly reduces the energy consumption, noise and vibration of the motor.
Application
VFD500 inverter for central air conditioners is particularly suitable for compressor equipment in water-cooled units and other HVAC systems. It can easily optimize the cooling capacity of constant temperature and pressure, ensure that the equipment always maintains a stable cooling effect under different load conditions, and meet the needs of efficient and energy-saving operation.
Product features
1. Small size: For the same power model, the size is reduced by more than 40% on average compared to the company's MD380 general-purpose inverter
2. Wide voltage range: Rated input three-phase AC 380 ~ 480 V, wide voltage up to 323 ~ 528 V
3. Long life: The busbar capacitor configuration is higher, and the design life is up to 10 years
4. Good protection performance: When the fan is accidentally short-circuited due to stalling or damage, the fan drive circuit can effectively protect it; the entire series can achieve effective protection of output short-circuit to ground, and buffer relay (contactor) pull-in fault protection
Product specification
|
Project |
Specifications |
|
Power grid voltage |
Three-phase 380~480 VAC; 50 Hz / 60 Hz (-15%~ + 10%) |
|
Power bracket |
Water cooling: 220kW~800 kW |
|
Output frequency |
0～500 Hz |
|
Carrier frequency |
2 kHz ~ 8 kHz can automatically adjust the carrier frequency according to the load characteristics. |
|
Input the frequency resolution |
Number setting: 0.01Hz; simulation setting: maximum frequency 0.025% |
|
Control method |
SVC, V / F control |
|
Overload capacity |
VFD500 water-cooled frequency conversion cabinet: 110% rated current for long-term overload. |
|
Recurrent ascension |
Automatic torque lift; manual torque lift 0.1%~30.0% |
|
V/F curve |
Five ways: straight; multipoint; square V / F; complete V / F separation; incomplete V / F separation. |
|
Add deceleration curve |
Straight-line or S-curve acceleration and deceleration mode; Four kinds of acceleration and deceleration times, and the acceleration and deceleration time range is 0.0~6500.0s. |
|
Electronic control |
Point moving frequency range: 0.00 Hz~50.00 Hz; point moving acceleration and deceleration time: 0.0s~6500.0s |
|
Multi-section speed operation |
The control terminal runs at up to 8 segments |
|
Built-in PID |
It can easily realize the process control closed-loop control system |
|
Automatic Voltage Adjustment (AVR) |
When the power grid voltage changes, it can automatically keep the output voltage constant |
|
Fast flow limit |
Avoid the frequent overflow fault of the drive |
|
Timing control |
Timing control function: set the time range from 0.0 min to 6500.0 min |
|
Communication bus |
Support for Modbus |
|
Instantly stop |
During the instantaneous power failure, maintain the drive to operate for a short time and enter the instantaneous stop state, and the panel RUN indicator will flash. |
|
Over pressure over loss speed control |
Automatic limit the current and voltage during operation to prevent frequent overflow pressure faults |
|
Quick flow restriction function |
Minimize overcurrent fault and protect the normal operation |
