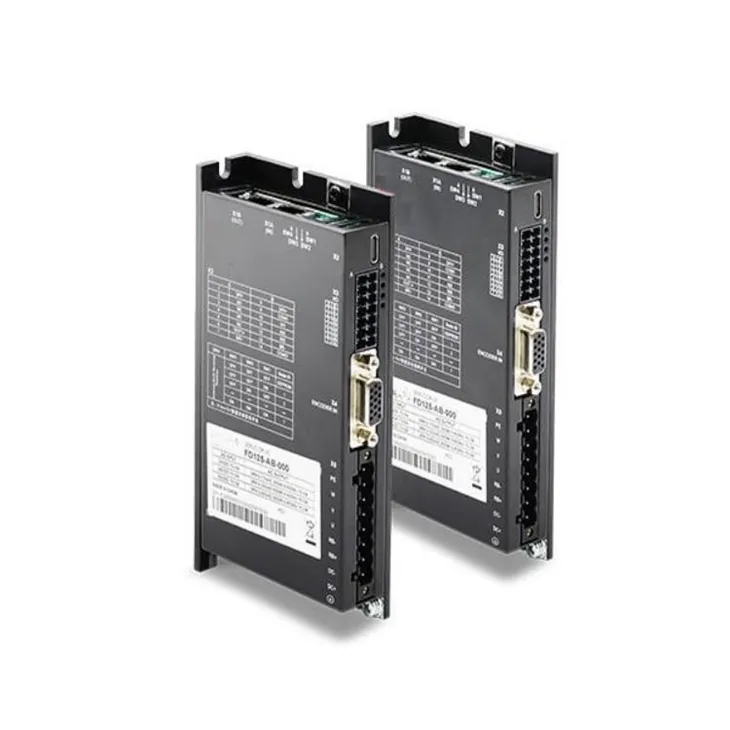

XS1X5 DC servo driver
The XS1X5 series DC servo drive is based on a new high-computing power platform, with a main frequency increased by 2.4 times, supporting position loop 8K and speed loop 16K, providing faster response speed and higher control accuracy for industrial equipment and robots. The performance of this DC servo drive has been significantly upgraded, with a power supply voltage covering 24V to 60V, and a general increase of 20% in sustainable output current. It has a strong overload capacity to ensure that the equipment can still maintain excellent performance under high load conditions. At the same time, the XS1X5 series is specially designed with a Type-C debugging interface, which can be quickly debugged by connecting to a computer directly via USB without external power supply, and with the dedicated debugging software KS3, it can significantly save time and cost.
application

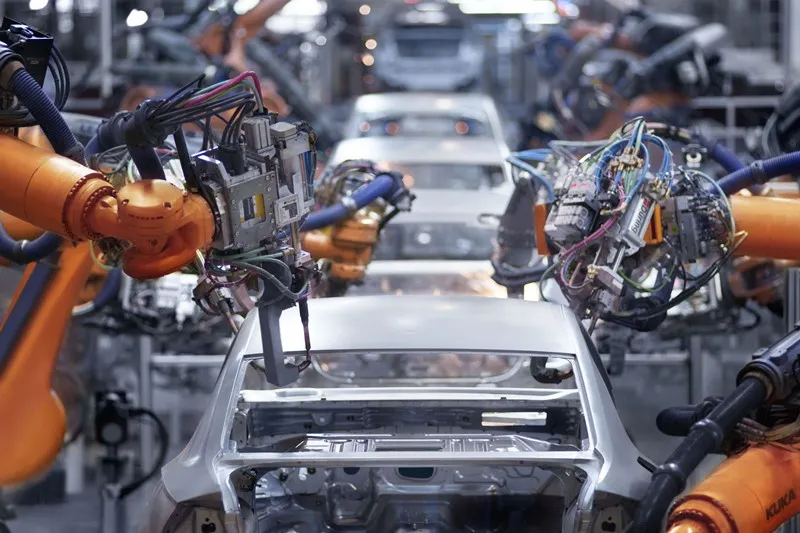

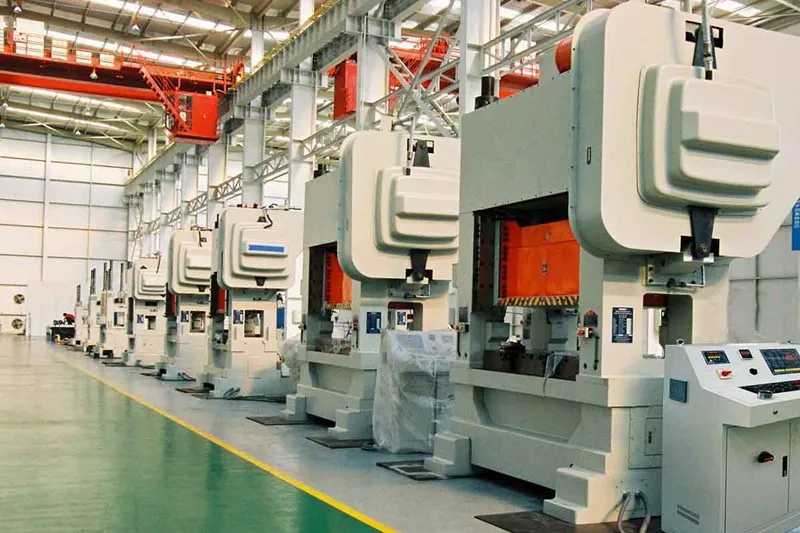

The XS1X5 series DC servo drive is widely used in robots, logistics automation, industrial equipment control and other fields due to its high performance and high adaptability.
Product features
- Compatible with RS485 and CANopen communications;
- Automatically identify motor parameters;
- Motor temperature monitoring, over-temperature protection;
Product specification
|
Model parameter |
XS 1 X 5 Servo-stock drive |
|||
|
XS125-AB-000 |
XS135-AB-000 |
XS145-AB-000 |
||
|
Turbine input |
Power power supply |
24VDC~60VDC |
||
|
Voltage |
Logic power supply |
24 VDC1A (not acceptable) |
||
|
Yan ding output |
Maximum continuous output current (md |
15A (up to 12A without auxiliary cooling) |
30A (up to 22A0 without auxiliary cooling |
50A (up to 35A without auxiliary cooling) |
|
Current |
Peak current (AP) |
48A |
100A |
160A |
|
Return signal |
Tamagawa protocol single graph, multi-graph encoder |
|||
|
Dynamic braking |
External brake resistance (according to the operation situation, mainly used in rapid start and stop situations |
|||
|
Energy consumption braking voltage absorption point |
Default 63V, can be set by comparison |
|||
|
Over voltage alarm voltage |
Default 70V, can be set by comparison |
|||
|
Over pressure alarm voltage |
Default 18V, can be set by the software |
|||
|
Cooling-down method |
Self-station cooling |
|||
|
Weight (Kg) |
0322 |
0.657 |
0.861 |
|
|
Logic loss of power (mW) |
1000 1200 1300 |
|||
|
General function |
input specification |
3 digital input, total terminal; high level: 12.5-30VDC; any level: 0-5 MDC; maximum frequency word: 1 KHz; input resistance: 5 KO. |
||
|
input function |
According to the need, the functions are as follows: drive enabling, drive error reset, drive operation mode control, speed sequential control, positive limit, negative limit, origin signal, instruction reverse. Internal speed segment control, internal position segment control, emergency stop, start to find the origin, command activation, electronic west wheel ratio switch, salt increase switch |
|||
|
impulse control |
Pulse + direction, Phase A + Phase B (3.3V~24M |
|||
|
Auxiliary specifications |
1 digital output, OUT 1 is open collector output, the highest voltage is 30%, driving capacity is 100 mA for PWM output, voltage effective value is 24W, I old R / day) output capacity is 1A. No external power supply, can directly drive the assembly device |
|||
|
output function |
According to the need of free definition, the functions are as follows: drive ready, driver error, motor position to, motor zero speed, motor assembly stripping car, motor speed to, index Z signal torque mode to reach the maximum limit speed, motor lock shaft, motor limit, the origin is found |
|||
|
Type-C |
Commissibug debugging, can use Kinoo upper computer software connection |
|||
|
Protection function |
Overvoltage protection, undervoltage heat protection, motor overheat (T) short circuit protection drive overheating protection |
|||
|
Bus Function |
R5485 |
Maximum support 115.2K port word, you can use the Modbus RTU protocol to communicate with the controller |
||
|
CANopen |
Maxto 1M wave holder, can use the CANopen protocol to communicate with the controller |
|||
|
Installation site |
No dust-dry and lockable (such as electrical structure) |
|||
|
Way to install |
Straight installation or horizontal installation |
|||
|
Usage Environment |
working temperature |
20℃ ~40C (no freezing), operating temperature over 40℃, the driver should be used |
||
|
Storage temperature |
-4070~707C (ice-free) |
|||
|
Humidity (no condensation) |
Below the 90% RH |
|||
|
Protection level |
IP20 |
|||
|
altitude |
When the work poster is below 1000m, and the work poster is above 1000 meters, every 100 meters rise, the working amount should be reduced by 1.5%, and the maximum working height is 4000 meters. |
|||
|
atmospheric pressure |
86kpa~106kpa |
|||
