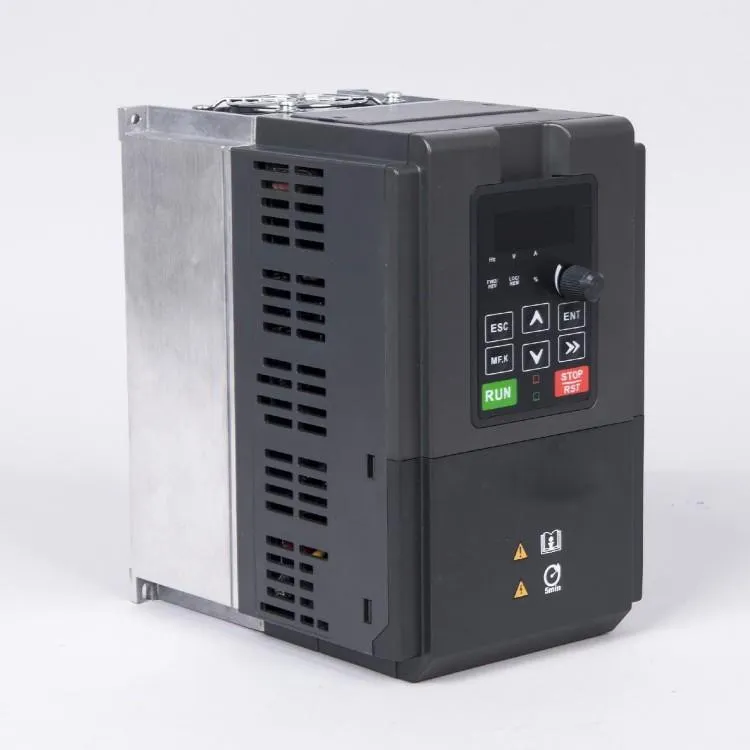

VFD500 Water pump inverter

VFD500 special inverters are developed for power supply of water pumps, based on the core control arithmetic of FR500 vector control inverters, combined with the control requirements of PV water pump application. The function of maximum power tracking, dormant at weak light, wake up at strong light, high water level dormant, under-load pre-warning and other control protection functions can ensure normal operation of water pumps according to the customers' requirements to switch to the grid power supply.

Application

Product features

Compatible with both DC and AC inputs
No batteries required
Large water output
Lightning protection, overvoltage, overcurrent and other protection systems

Product specification

Maximum input DC voltage	450VDC
Recommended Voc voltage range	170～300VDC
Recommended MPPT voltage range	140～240VDC
Start voltage range	80～450VDC
Power grid or backup generator input
Input voltage AC	Single-phase 110V (-15%~30%)
Output specifications
Rated output voltage, AC	3PH 110V
Output frequency range	0~600.00 Hz (default: 0~50.00 Hz)
Protect
Uilt-in protection function	Lightning protection, overcurrent, overvoltage, output phase deficiency, underload, underload, undervoltage, short circuit, overheating, water pump dry rotation, etc.

VFD310 series backpack water pump dedicated frequency converter

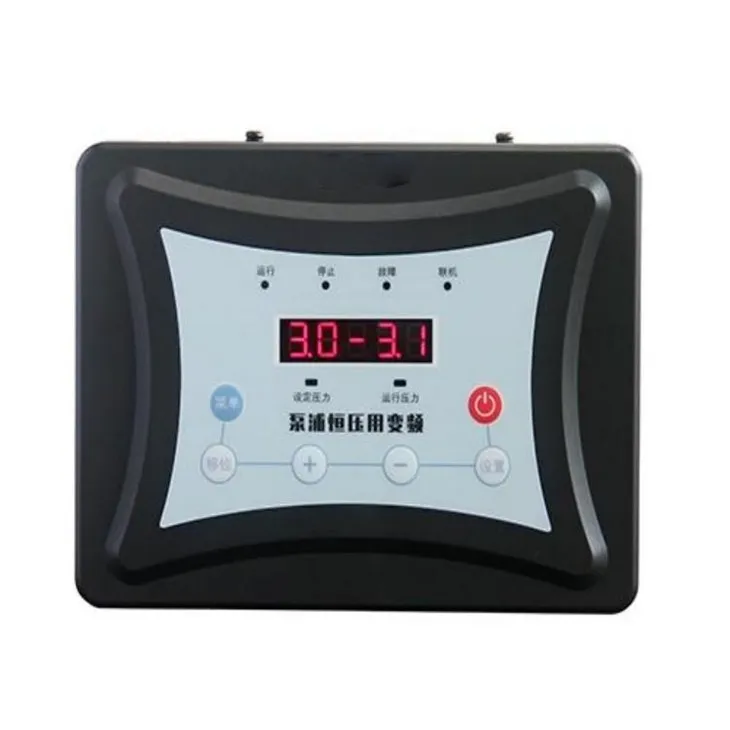

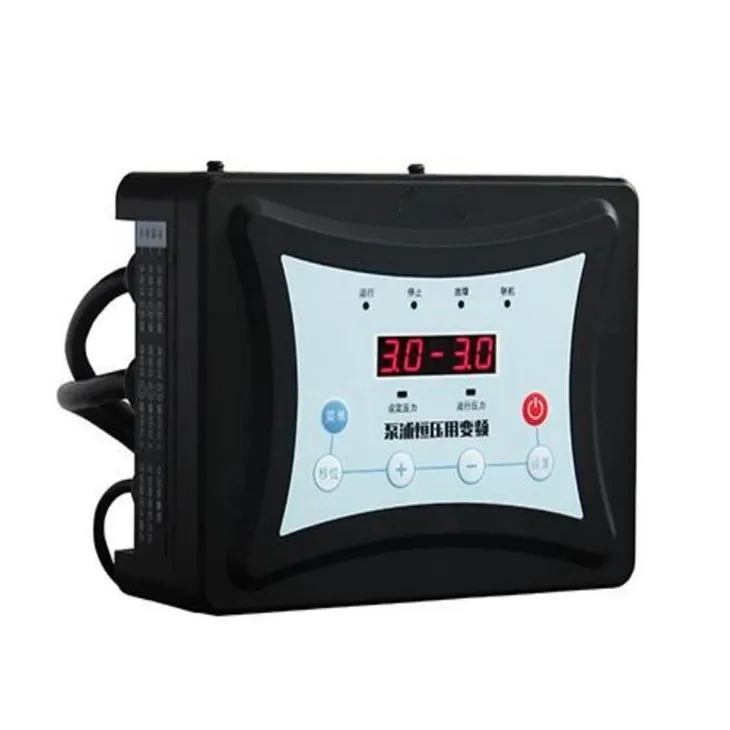

VFD310 backpack water pump inverter specially built for constant pressure water supply demand, with reliable special function of constant pressure water supply, to meet the needs of residential, commercial and industrial fields for stable water supply.

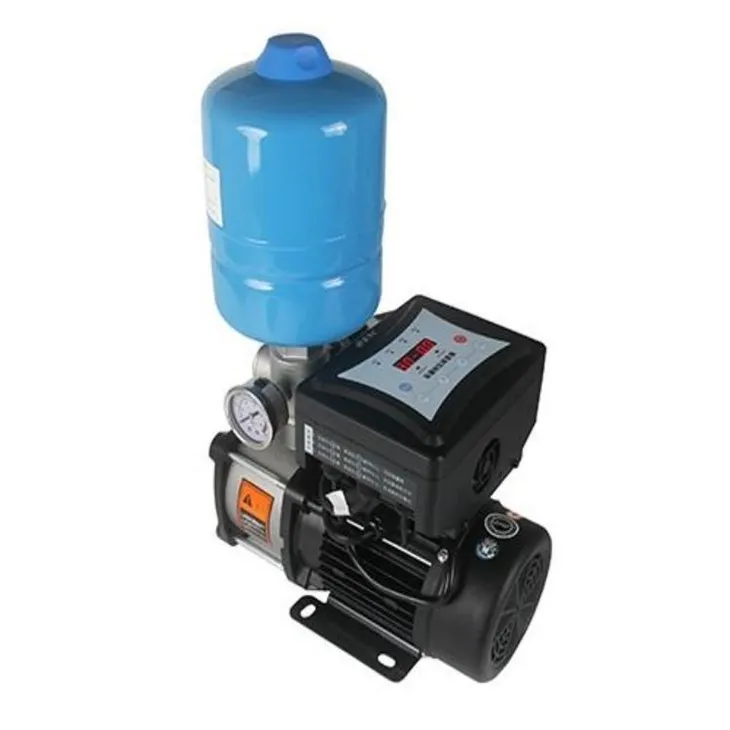

The water pump inverter adopts a waterproof design, with a protection grade of IP54, and can operate stably in a wet or water mist environment. Its installation method is also very convenient, which can be directly installed on the motor junction box, saving the installation space. In addition, the XC310 water pump frequency converter can be connected to a variety of sensor signals, real-time detection of water pressure changes, automatically adjust the water pump operation to maintain a constant water pressure. The standard RS485 communication interface supports multi-pump online operation, allowing the linkage of multiple pump systems, and dynamically adjusting the water supply when the demand changes, which is suitable for the efficient management of residential constant pressure water supply equipment and other water supply systems.

product-382-483

Product features

Support multi-pump online control, standby host automatic switching function, more intelligent.

With high and low pressure, water shortage and anti-air rotation, rust and freezing and other protection functions, more reliable.
The lp 54 high protection design, not afraid of all kinds of harsh application environment.

Product Specification

Project			Item Description
Import	Rated voltage and frequency		Single-phase 220V, 50Hz / 60Hz
	Allowable voltage fluctuation range		Single-phase voltage: 220V: 200~260V.
Output	voltage		220 volt level: 0~220V
	frequency		0Hz~400Hz
	overload capacity		120% rated current for 1 min
Control performance	control method		Optimal spatial voltage vector SVPWM constant voltage frequency ratio V / F control
	Speed range		1:100
	starting torque		Low frequency up to 100% rated torque
	velocity perturbation		± 0.5% rated synchronous rotational speed
	Frequency accuracy		Number setting: maximum frequency X ± 0.01%; simulation setting: maximum frequency ± 0.5%
	frequency resolution	Simulation setting	And 0.1% of the highest frequency
		Digital setting accuracy	0.01Hz
Run the function	Run the command given to the channel		Operation keyboard given, control terminal given, communication given.
	Run the frequency given the channel		Numbers given, analog given, and communication given.
Input output features	Digital input channel			A 2-way universal digital input channel
	analog input channel			1 channel analog input channel, optional 4 ~ 20 mA or 0~10V input.
Special plane function	Fast flow limit			Limit limit frequency converter flow, more reliable operation.
	Single constant pressure water supply			Back negative machine constant pressure water supply function, support PID operation, dormancy and awakening.
	Online constant pressure water supply			Support multi-machine network constant pressure water supply, through RS-485 bus communication, the maximum support for 1 host and 4 auxiliary online.
	Special plane protection function			High and low pressure detection alarm, water shortage detection alarm, rust and antifreeze function, etc
Function keyboard	The keyboard display			Can display the setting pressure, feedback pressure, output pressure, output voltage, output current and other parameters
	Key lock			Lock in some or all of the keys
	Combine the key shortcut function			Quick switch common range, quick switch motor direction, quick switch emergency water supply
Defencive function				Overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, underload protection, terminal protection, etc
Levels of protection				IP54
Way to install				backpack

VFD51 solar water pump frequency converter

VFD51 series pump inverter is designed to meet the application needs of solar pumps in harsh environmental conditions. This series of products supports a power range of 2.2kW to 11kW, has an IP65 protection level, and can operate stably in extreme weather, humid or dusty environments, ensuring long-term reliability and efficiency of the equipment. The XC51 series has an intelligent AC/DC switching function, which can automatically select the optimal power supply mode according to lighting conditions. During the daytime, the photovoltaic panel is used to supply power, and when the light is weak or no light, it switches to AC power supply to achieve all-weather operation and ensure the efficient operation of the pump in different environments. AC and DC power supplies can be connected at the same time, and the system intelligently complements each other, maximizing the use of solar energy and effectively solving the problem of load operation at night or in low light conditions.

application

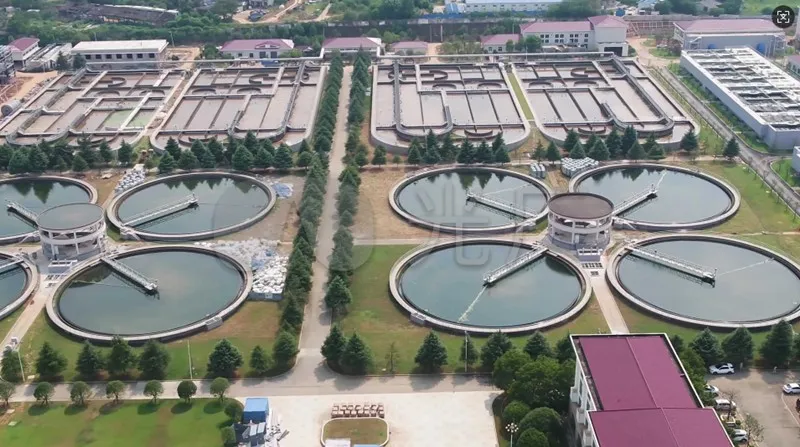

VFD51 series pump inverter is an ideal choice for pump system applications. It is suitable for agricultural irrigation, sewage treatment, mine pumping and other fields, helping users improve energy efficiency and reduce operating costs.

Product Features

Compatible with AC and DC, intelligent compensation of power supply mode, solving the problem of nighttime load operation
All-metal structure, reliable performance, high-end appearance
Supports multi-connection to meet high efficiency

Product Specidications

Model	VFDS51-2S2R2-E	VFDS51-4T2R2-E	VFDS51-4T004-E	VFDS51-4T5R5-E	VFDS51-4T7R5-E	VFDS51-4T011-E
DC Input [DC]
Maximum input voltage [V]	450	900
starting voltage [V]	100	220
Minimum input voltage [V]	70	200
MPPT voltage range [V]	200-400	400-750
Optimum input operating voltage [V]	330	560
Number of DC input [MC4]	1			2
Boost function	standard configuration		/
AC input [AC]
Input voltage range [V]	Single-phase of 150-230	Three-phase 280-480
Input frequency [Hz]	50/60
AC Output [AC]
Output power [kW]	2.2	2.2	4	5.5	7.5	11
Rated current [A]	9.6	5.1	9	13	17	25
Output voltage [V]	Three-phase 0-220	Three phases of 0-380
Output Frequency[Hz]	0-50 / 60
